Overview

The MQTTSuite is a lightweight, production-ready MQTT 3.1.1 integration system composed of four focused applications

MQTTBroker

  • Role: Full MQTT broker (MQTT 3.1.1)
  • Highlights: Can simultaneously act as MQTTIntegrator; built-in Web UI (live clients)

MQTTIntegrator

  • Role: Mapping-driven IoT translator for modelling IoT scenarios
  • Highlights: Subscribes → transforms (topics and messages via INJA templates or static mappings) → republishes; wildcards (+, #); fine-grained QoS/retain

MQTTBridge

  • Role: Pure client-side bridge
  • Highlights: Multiple logical bridges; connects to multiple brokers per bridge; selectively bridges topics among them; loop prevention

MQTTCli

  • Role: Command-line client
  • Highlights: Subscribe to topics and/or publish messages

powered by SNode.C, a single-threaded, single-tasking C++ networking framework. All of these applications have built-in support for encrypted and unencrypted stream sockets and WebSockets over IPv4/IPv6 and UNIX domain sockets.

Thanks to its small footprint, MQTTSuite is especially suitable for resource-constrained systems (embedded Linux, routers, SBCs).

Because these are fully featured tools, they can also be used as foundations for developing specialized MQTT applications. One example is extending MQTTCli to persist incoming JSON messages in a database.

License

MQTTSuite is dual-licensed under MIT and GPL-3.0-or-later. You may choose either license when using the framework.

SPDX-License-Identifier: MIT OR GPL-3.0-or-later

Note: MQTTSuite applications are built on top of SNode.C and follow the respective licensing terms of their repositories and bundled libraries.

Copyright

Volker Christian (me@vchrist.at, volker.christian@fh-hagenberg.at)

Table of Content

Installation

Installation is straightforward:

  1. Install the SNode.C framework.
  2. Install required tools and libraries.
  3. Clone, build, and install MQTTSuite.

Use the detailed platform-specific instructions below.

Supported Systems & Hardware

Development is primarily on Debian Sid; since Debian Bookworm it also builds cleanly on Debian stable. With the required tools and libraries installed, it should compile on most Linux distributions.

Known good targets:

  • x86-64 (PC/servers)
  • ARM 32/64-bit (e.g., Raspberry Pi 3/4/5)
  • OpenWrt 23.05.0 and later (all architectures)
  • Android via Termux (documentation in preparation)

Minimum Required Compiler Versions

SNode.C and MQTTSuite leverage C++20 features; therefore recent compilers are required.

  • GCC ≥ 12.2
  • Clang ≥ 13.0

Either toolchain is supported.

Requirements & Dependencies

Some tools and libraries must be present. A few libraries are bundled within MQTTSuite.

Tools

Mandatory

Optional (useful for development/QA)

Mandatory Libraries and Frameworks

Frameworks

Libraries

Bundled (no separate installation required)

Installation on Debian-Style Systems (x86-64, ARM)

Install SNode.C

Follow the SNode.C installation guide:
https://github.com/SNodeC/snode.c?tab=readme-ov-file#installation

Install system packages

sudo apt update
sudo apt install libfmt-dev
# Recommended for building:
# sudo apt install git cmake build-essential ninja-build pkg-config

Build & Install MQTTSuite

mkdir mqttsuite
cd mqttsuite
git clone --recurse-submodules https://github.com/SNodeC/mqttsuite.git
mkdir build
cd build
cmake ../mqttsuite # optionally: -G Ninja -DCMAKE_BUILD_TYPE=Release
make -j"$(nproc)" # or: ninja
sudo make install # or: sudo ninja install
sudo ldconfig

Tip: Use all CPU threads (-j$(nproc)) to speed up the build—especially useful on SBCs.

Deployment on OpenWrt

Assumptions: You have SSH and SFTP access to the router, and WAN connectivity is configured.

You do not install SNode.C manually; the OpenWrt build will pull it in automatically via the feed.

High-level steps:

  1. Choose and download an OpenWrt SDK
  2. Patch the SDK to add the SNode.C (snodec) feed (contains the MQTTSuite feed)
  3. Install the MQTTSuite package and dependencies
  4. Configure the SDK
  5. Cross-compile MQTTSuite
  6. Deploy the resulting .ipk packages to the router

Choose & download an SDK

Download an SDK (23.05.0-rc1 or later) from the OpenWrt download site and extract it to <DIR>.

Example (Netgear MR8300, IPQ4019):

cd <DIR>
wget -qO - https://downloads.openwrt.org/releases/23.05.0-rc2/targets/ipq40xx/generic/openwrt-sdk-23.05.0-rc2-ipq40xx-generic_gcc-12.3.0_musl_eabi.Linux-x86_64.tar.xz | tar Jx

This creates an SDK directory like: openwrt-sdk-<version>-<arch>-<atype>_<compiler>-<cver>_<libc>_<abi>.Linux-x86_64 → referred to as <SDK_DIR>.

For the example above:

  • <version> = 23.05.0-rc2
  • <arch> = ipq40xx
  • <atype> = generic
  • <compiler> = gcc
  • <cver> = 12.3.0
  • <libc> = musl
  • <abi> = eabi

Patch the SDK to integrate the SNode.C feed

This feed contains also the definitions for compiling MQTTSuite.

cd <SDK_DIR>
echo "src-git snodec https://github.com/SNodeC/OpenWRT" >> feeds.conf.default

Install the MQTTSuite package definition and its dependencies

cd <SDK_DIR>
./scripts/feeds update base packages snodec # only these feeds are needed
./scripts/feeds install mqttsuite

Configure the SDK

cd <SDK_DIR>
make defconfig

You can keep defaults. To customize SNode.C/MQTTSuite options:

cd <SDK_DIR>
make menuconfig
# Navigate: Network -> SNode.C
# or: Network -> MQTTSuite

Cross-compile MQTTSuite

cd <SDK_DIR>
make package/mqttsuite/compile -j"$(nproc)"

What happens:

  1. Feeds and package metadata are refreshed locally.
  2. All direct/indirect dependencies are fetched and built as needed.
  3. MQTTSuite is cloned and cross-compiled.

After building, the .ipk packages for MQTTSuite and SNode.C are usually found under: <SDK_DIR>/bin/packages/<architecture>/snodec/

Deploy MQTTSuite

Copy and install the generated packages onto the router:

cd <SDK_DIR>/bin/packages/<architecture>/snodec
sftp root@<router-ip>
cd /tmp
put snode.c*.ipk
put mqttsuite*.ipk
exit
ssh root@<router-ip>
cd /tmp
opkg install snode.c*.ipk mqttsuite*.ipk # add --force-reinstall to overwrite same version
exit

On first installation you may see errors about missing dependencies from the base OpenWrt repos. Install those with opkg and rerun the opkg install for MQTTSuite/SNode.C.

During package installation, a new UNIX group (with member root) is created and used for managing config, log, and PID files.
Note: log out and log in again to activate the new group membership.

Post-Install Tips

  • Persist-once workflow: All MQTTSuite applications support --write-config / -w. Start once with explicit flags, verify, then run with no flags.
  • Use UNIX domain sockets for same-host integrations; they reduce overhead and surface area.
  • TLS everywhere off-host: Use TLS (and client auth where appropriate) when crossing untrusted networks.
  • Parallel builds: Always use -j$(nproc) (or Ninja) to accelerate compiles.

MQTTBroker

The MQTTBroker is the central broker of the MQTTSuite and supports multiple connection instances across several transport protocols. Additional transports (e.g., Bluetooth) can be added in the mqttbroker.cpp source code.

Connection instances of default builds of MQTTBroker

  • in-mqtt: MQTT over IPv4
  • in-mqtts: MQTTS over IPv4
  • in6-mqtt: MQTT over IPv6
  • in6-mqtts: MQTTS over IPv6
  • un-mqtt: MQTT over Unix Domain Sockets
  • un-mqtts: MQTTS over Unix Domain Sockets
  • in-http: Web Interface and MQTT over WS via IPv4
  • in-https: Web Interface and MQTTS over WSS over IPv4
  • in6-http: Web Interface and MQTT over WS via IPv6
  • in6-https: Web Interface and MQTTS over WSS via IPv6
  • un-http: Web Interface and MQTT over WS via Unix Domain Sockets
  • un-https: Web Interface and MQTTS over WSS via Unix Domain Sockets

One can control which instances are built by enabling or disabling them through the available cmake options.

Configuration

All aspects—such as port numbers, UNIX sun paths, and per-listener options—are configurable via the SNode.C configuration system. You can set options in code, on the command line, or by using a configuration file.

If encrypted access is required, suitable certificates need to be provided.

Notes

  • Persistent sessions: Configure a session store if you want client sessions to survive broker restarts by adding the command-line option
    --mqtt-session-store <path-to-session-store-file>.
  • Embedded integrator: If the MQTTBroker should also act as an integrated MQTTIntegrator, provide a mapping description file via
    --mqtt-mapping-file <path-to-mqtt-mapping-file.json>.
  • Web UI templates: The path to the HTML templates for the MQTTBroker Web Interface can be set with
    --html-dir <dir-of-html-templates>. The default directory /var/www/mqttsuite/mqttbroker is already configured in mqttbroker.cpp.
  • Persisting options: All three options above can be made persistent by storing their values in a configuration file; append --write-config or -w to the command line.

Quick Start (Recommended Flow)

Explore the MQTTBroker command line by using mqttbroker --help.

mqttbroker --help
Configuration for Application 'mqttbroker'
Usage: mqttbroker [OPTIONS] [INSTANCES [--help]]
Application Options:
--mqtt-mapping-file [path]
MQTT mapping file (json format) for integration
--mqtt-session-store [path]
Path to file for the persistent session store
--html-dir [path] [/usr/local/var/www/mqttsuite/mqttbroker]
Path to html source directory
Options (nonpersistent):
-c, --config-file configfile:NOT DIR [/home/voc/.config/snode.c/mqttbroker.conf]
Read a config file
-w, --write-config [configfile]:NOT DIR [/home/voc/.config/snode.c/mqttbroker.conf]
Write config file and exit
-k, --kill
Kill running daemon
-i, --instance-alias instance=instance_alias [instance=instance_alias [...]]
Make an instance also known as an alias in configuration files
-s, --show-config
Show current configuration and exit
--command-line{standard}={standard,required,full,default}
Print a command line
standard (default): View all non-default and required options
required: View required options only
full: View the full set of options with their default or
configured values
default: View the full set of options with their default values
--version
Framework version
-h{exact}, --help{exact}={standard,exact,expanded} {exact}
Print help message and exit
Options (persistent):
-l, --log-level level:INT in [0 - 6] [4]
Log level
-v, --verbose-level level:INT in [0 - 10] [2]
Verbose level
-q{true}, -u{false}, --quiet{true}={true,false} [false]
Quiet mode
--log-file logfile:NOT DIR [/home/voc/.local/log/snode.c/mqttbroker.log]
Log file path
-e{true}, -n{false}, --enforce-log-file{true}={true,false} [false]
Enforce writing of logs to file for foreground applications
-d{true}, -f{false}, --daemonize{true}={true,false} [false]
Start application as daemon
--user-name username [voc] Needs: --daemonize
Run daemon under specific user permissions
--group-name groupname [voc] Needs: --daemonize
Run daemon under specific group permissions
Instances:
in-mqtt
Configuration for server instance 'in-mqtt'
in-mqtts
Configuration for server instance 'in-mqtts'
in6-mqtt
Configuration for server instance 'in6-mqtt'
in6-mqtts
Configuration for server instance 'in6-mqtts'
un-mqtt
Configuration for server instance 'un-mqtt'
un-mqtts
Configuration for server instance 'un-mqtts'
in-http
Configuration for server instance 'in-http'
in-https
Configuration for server instance 'in-https'
in6-http
Configuration for server instance 'in6-http'
in6-https
Configuration for server instance 'in6-https'
un-http
Configuration for server instance 'un-http'
un-https
Configuration for server instance 'un-https'
Application 'mqttbroker' powered by SNode.C
(C) 2020-2025 Volker Christian <me@vchrist.at>
https://github.com/SNodeC/snode.c

This help output outlines the various connection instances provided by the application: in-mqtt, in-mqtts, in6-mqtt, in6-mqtts, un-mqtt, un-mqtts, in-http, in-https, in6-http, in6-https, un-http and un-https.

All of these are enabled (active) by default and can be selectively disabled.

Disable all but the in-mqtt instance

mqttbroker in-mqtts --disabled
in6-mqtt --disabled
in6-mqtts -disabled
un-mqtt --disabled
un-mqtts --disabled
in-http --disabled
in-https --disabled
in6-http --disabled
in6-https --disabled
un-http --disabled
un-https --disabled
-w

Start a plain MQTT listener on TCP/IPv4

mqttbroker in-mqtt \
local --host 0.0.0.0 \
--port 1883

Add a persistent session store (survives restarts)

mqttbroker --mqtt-session-store /var/lib/mqttsuite/mqttbroker/session.store \
in-mqtt \
local --host 0.0.0.0 \
--port 1883

Enable the Web Interface (HTTP)

mqttbroker --mqtt-session-store /var/lib/mqttsuite/mqttbroker/session.store \
in-mqtt \
local --host 0.0.0.0 \
--port 1883
in-http \
--disabled=false \
local --host 0.0.0.0 \
--port 8080

Persist your configuration using -w (so you don’t repeat flags)

mqttbroker --mqtt-session-store /var/lib/mqttsuite/mqttbroker/session.store \
in-mqtt \
local --host 0.0.0.0 \
--port 1883
in-http \
--disabled=false \
local --host 0.0.0.0 \
--port 8080 \
-w

From now on, a plain mqttbroker starts with the stored configuration.

(Optional) Embed the integrator (after the configuration has been saved)

mqttbroker --mqtt-mapping-file /etc/mqttsuite/mappings/mqtt-mapping.json

(For development only) Use custom HTML templates for the Web UI (after the configuration has been saved)

mqttbroker --html-dir /var/www/mqttsuite/mqttbroker

Supported Transports

MQTT over TCP/IP

MQTT clients can connect via IPv4 and IPv6, using both encrypted and unencrypted channels.

Instance Protocol Encryption Local Port
in-mqtt IPv4 No 1883
in-mqtts IPv4 Yes 8883
in6-mqtt IPv6 No 1883
in6-mqtts IPv6 Yes 8883

MQTT over UNIX Domain Sockets

For local (same-host) communication, the broker also supports UNIX domain sockets.

Instance Encryption Local Sun Path
un-mqtt No /tmp/mqttbroker-un-mqtt
un-mqtts Yes /tmp/mqttbroker-un-mqtts

MQTT over WebSockets

Clients can connect via WebSockets over both IPv4 and IPv6.

Instance Protocol Encryption Local Port Request Target Sec-WebSocket-Protocol
in-http IPv4 No 8080 / or /ws mqtt
in-https IPv4 Yes 8088 / or /ws mqtt
in6-http IPv6 No 8080 / or /ws mqtt
in6-https IPv6 Yes 8088 / or /ws mqtt

MQTT over UNIX Domain WebSockets

For local (same-host) communication, the broker also supports WebSockets over UNIX domain sockets.

Instance Encryption Local Sun Path Request Target Sec-WebSocket-Protocol
un-http No /tmp/mqttbroker-un-http / or /ws mqtt
un-https Yes /tmp/mqttbroker-un-https / or /ws mqtt

Web Interface

Web Interface over TCP/IP

The MQTTBroker Web Interface provides real-time visibility into active client connections.

Instance Protocol Encryption Local Port Request Target
in-http IPv4 No 8080 / or /clients
in-https IPv4 Yes 8088 / or /clients
in6-http IPv6 No 8080 / or /clients
in6-https IPv6 Yes 8088 / or /clients

Web Interface over UNIX Domain Sockets

For local (same-host) communication, the broker also supports WebSockets over UNIX domain sockets.

Instance Encryption Local Sun Path Request Target
un-http No /tmp/mqttbroker-un-http / or /clients
un-https Yes /tmp/mqttbroker-un-https / or /client

Additions & Field-Tested Guidance

Quick TLS checklist for MQTT(TCP) and MQTT over WebSockets

  • Prepare the server certificate chain and private key; include a CA file/dir if you validate client certs or upstreams.
  • Apply via the instance’s tls section (e.g., in-mqtts, in6-mqtts, in-https, in6-https).
  • Verify CN/SAN covers the hostname clients use.
  • Lock down key file permissions (e.g., chmod 600 for the key, owned by the service user).
  • After a successful run, append -w to persist TLS configuration.

Example (TCP/TLS):

mqttbroker in-mqtts \
local --host 0.0.0.0 \
--port 8883 \
tls --cert /etc/ssl/mqttsuite/server.crt \
--cert-key /etc/ssl/mqttsuite/server.key \
--ca-cert /etc/ssl/mqttsuite/ca.crt

Example (WebSockets/TLS):

mqttbroker in-https \
local --host 0.0.0.0 \
--port 8088 \
tls --cert /etc/ssl/mqttsuite/server.crt
--cert-key /etc/ssl/mqttsuite/server.key

Making configuration persistent (recommended)

  • Start the broker with your desired CLI options; verify behavior.
  • Run once with -w (or --write-config) to save the configuration.
  • Thereafter, start with just mqttbroker (and override via flags only when needed).

Commonly persisted options:

  • --mqtt-session-store <path> — persist sessions across restarts.
  • --mqtt-mapping-file <path.json> — enable the embedded integrator.
  • --html-dir <path> — point the Web UI to your HTML templates.

WebSockets specifics that often trip clients

  • Subprotocol: ensure clients send Sec-WebSocket-Protocol: mqtt. Most libraries expose this as a “subprotocol” option.
  • Request target: use / or /ws (both are accepted by the WS and WSS instances).
  • Reverse proxies: preserve Upgrade, Connection, and Sec-WebSocket-Protocol headers through the proxy.

Quick sanity checks with common tools

# Plain MQTT over TCP
mosquitto_sub -h 127.0.0.1 -p 1883 -t '#' -v
mosquitto_pub -h 127.0.0.1 -p 1883 -t 'test/topic' -m 'hello'
# MQTT over WebSockets (HTTP)
mosquitto_sub -h 127.0.0.1 -p 8080 -t '#' -v --protocol websockets

Quick sanity checks with MQTTSuites command line tool

# Subscribe (plain MQTT)
mqttcli in-mqtt \
remote --host 127.0.0.1 \
--port 1883 \
sub --topic '#'
# Publish (plain MQTT)
mqttcli in-mqtt \
remote --host 127.0.0.1 \
--port 1883 \
pub --topic 'test/topic' \
--message 'hello'
# MQTT over WebSockets (HTTP)
mqttcli in-wsmqtt \
remote --host 127.0.0.1 \
--port 8080 \
pub --topic 'test/topic' \
--message 'hello'
# MQTT over Unix Domain Sockets
mqttcli un-mqtt \
remote --sun-path /tmp/mqttbroker-un-mqtt \
pub --topic 'test/topic' \
--message 'hello'
# Subscribe and publish at once
mqttcli in-mqtt \
remote --host 127.0.0.1 \
--port 1883 \
sub --topic '#' \
pub --topic 'test/topic' \
--message 'hello'

Notes for UNIX domain sockets

  • Use the UNIX sockets (/tmp/mqttbroker-un-mqtt*) for same-host services; they offer low overhead and simple isolation.
  • Place sockets under /run or /var/run for service-managed lifecycles.
  • Ensure appropriate ownership/group (e.g., a dedicated mqttsuite group) and permissions, so clients can connect without elevating privileges.

Embedded MQTTIntegrator (when --mqtt-mapping-file is provided)

  • The broker can embed the MQTTIntegrator to transform/normalize payloads and remap topics without touching devices.
  • Typical uses:
    • Define and execute complex processing logic for heterogeneous IoT systems, e.g., Smart Home orchestration or device-to-device rule sets.
    • Convert vendor-specific JSON into a normalized schema.
    • Scale/rename fields (e.g., temp → temperature, multiply by 0.1).
    • Route subsets of topics to dashboards or database consumers.

Keep your mapping JSON in version control and validate changes in staging before production.

Extending transports

  • Thanks to SNode.C’s layered network design, adding transports (e.g., Bluetooth RFCOMM/L2CAP) follows the same instance pattern as IPv4/IPv6 and UNIX.
  • Define endpoint parameters (address/port, channel, or path), optionally layer TLS (where applicable), and expose configuration via the broker’s CLI/config.

Diagnostics, hardening & tips

Diagnostics

  • If a listener fails to start, check for “port in use” conflicts or permission issues on UNIX sockets.
  • For WebSockets upgrade failures, verify the subprotocol and target path.

Hardening

  • Bind to specific interfaces as needed (e.g., --listen 127.0.0.1 for local-only).
  • Use TLS for any untrusted network segments.
  • Restrict access to private keys and UNIX sockets (ownership/mode).
  • Apply firewall rules to limit exposure to necessary ports only.

Common pitfalls

  • TLS hostname mismatch: client connects via a hostname not covered by CN/SAN.
  • Missing subprotocol on WS: negotiation fails without mqtt subprotocol.
  • Permission denied on UNIX sockets: fix group membership and file mode.

Protocol version note

  • The broker implements MQTT 3.1.1. Configure client libraries accordingly unless you intentionally diverge.

Why this layout works well in production

  • Uniform instances: Every listener (TCPv4/v6, UNIX, WS) is an instance with consistent options (listen address/port or path, TLS, limits). This keeps deployments predictable.
  • Predictable defaults: Conventional ports (1883/8883, 8080/8088) and request targets (/ or /ws) make client configuration straightforward.
  • Persist-once workflow: Use -w once, then keep day-to-day ops minimal and repeatable.

MQTT Mapping Description

As optional for the MQTTBroker a MQTT mapping description is mandatory for the MQTTIntegrator.

Purpose

An IoT app’s logic in MQTTSuite is expressed as a JSON mapping file.
This file tells the MQTTIntegrator or MQTTBroker how to:

1) subscribe to incoming MQTT topics,
2) translate (remap) the topics and payloads, and
3) publish the translated messages back to the same broker connection.

A complete example lives in the Canonical Mapping & Test Case section of the MQTTIntegrator description. The file must validate against the schema at lib/mapping-schema.json.

Top-Level Structure

A mapping description has three top-level objects:

  • discover_prefix — prefix for discovery topics (currently not used).
  • connection — MQTT client options used by the integrator.
  • mapping — the actual topic tree and translation rules.
{
"discover_prefix": "snode.c",
"connection": {
"keep_alive": 60,
"client_id": "Client",
"clean_session": true,
"will_topic": "will/topic",
"will_message": "Last Will",
"will_qos": 0,
"will_retain": false,
"username": "Username",
"password": "Password"
},
"mapping": {
/* see sections below */
}
}

connection options (summary)

Field Type Default Notes
keep_alive integer 60 Seconds between PINGREQs.
client_id string "" Logical client name.
clean_session boolean true Start clean or resume a retained session.
will_topic string "" Last Will topic.
will_message string "" Last Will payload.
will_qos integer 0 0…2.
will_retain boolean false Retain Last Will.
username string "" Username (optional).
password string "" Password (optional).

The integrator uses these as client settings to connect to the broker it will subscribe to and republish on.

The mapping Object (big picture)

mapping defines a topic hierarchy and subscriptions with translation rules.

  • A topic level is:
    • a single object describing one topic, or
    • an array of such objects describing sibling topics.
  • Topic levels can be recursively nested to model trees.
  • topic_level.name may be a literal (no wildcards) or a single-character MQTT wildcard:
    • + → single-level wildcard
    • # → multi-level wildcard (typically used as a leaf)

Minimal shapes

Single topic level

"mapping": {
"topic_level": {
"name": "topic_level_name"
}
}

Nested topic levels

"mapping": {
"topic_level": {
"name": "parent",
"topic_level": {
"name": "child"
}
}
}

Siblings with a nested child

"mapping": {
"topic_level": [
{ "name": "sibling_1" },
{
"name": "sibling_2",
"topic_level": { "name": "child_of_sibling_2" }
}
]
}

Wildcard examples

Single-level wildcard (+): subscribe to home/+/temperature

"mapping": {
"topic_level": {
"name": "home",
"topic_level": [
{
"name": "+",
"topic_level": {
"name": "temperature"
}
}
]
}
}

Multi-level wildcard (#): subscribe to everything below sensors/#

"mapping": {
"topic_level": {
"name": "sensors",
"topic_level": {
"name": "#"
}
}
}

The integrator performs correct wildcard matching when subscribing and dispatching to the defined subscription.

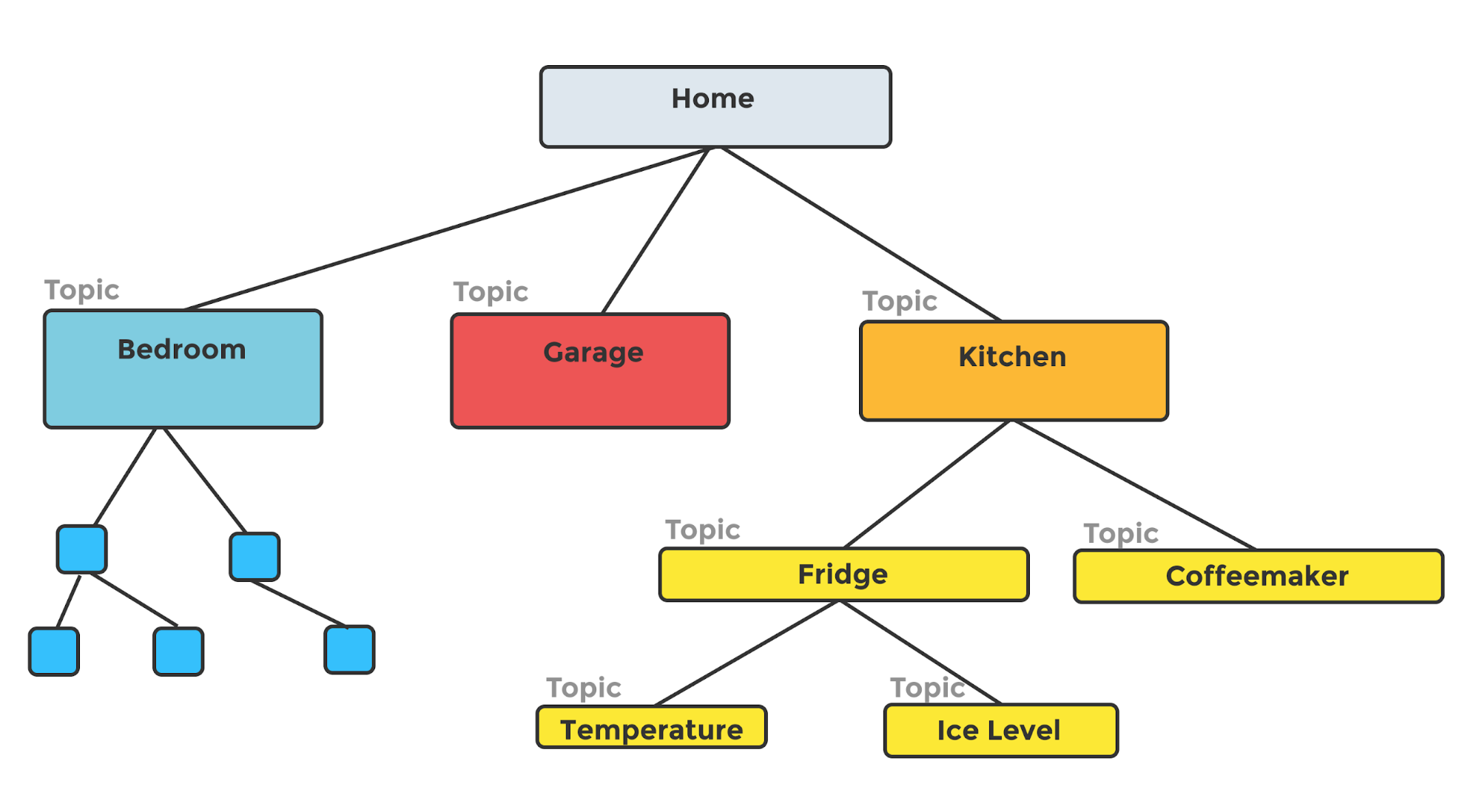

A more complex hierarchy

A complex topic_level structure
"mapping": {
"topic_level": {
"name": "Home",
"topic_level": [
{
"name": "Bedroom",
"topic_level": [
{ "name": "..." },
{ "name": "..." }
]
},
{ "name": "Garage" },
{
"name": "Kitchen",
"topic_level": [
{
"name": "Fridge",
"topic_level": [
{ "name": "Temperature" },
{ "name": "IceLevel" }
]
},
{ "name": "Coffeemaker" }
]
}
]
}
}

Subscriptions & Translation Rules

A topic_level can contain a subscription object.
This instructs the integrator to subscribe to that concrete topic (using the topic path implied by the nested names) and map incoming messages to new topics/payloads.

"topic_level": {
"name": "device",
"topic_level": {
"name": "sensor",
"subscription": {
"type": "binary_sensor",
"qos": 2,
/* one of: static / value / json (or an array of them) */
}
}
}
  • subscription.type — freeform label (useful for UIs or discovery).
  • subscription.qos — QoS used when the integrator subscribes at the broker (0…2).
    Publishing QoS is set per mapping via its own qos field (see below).
  • Exactly one mapping section is required (or an array of them):
    • static — string-match mapping (exact incoming payload → mapped payload).
    • value — template mapping where message is a scalar value.
    • json — template mapping where message is a JSON object.

Each mapping section also accepts arrays ([ … ]) to apply multiple mappings for the same subscription.

Mapping Sections

All mapping sections share commons:

  • mapped_topic (string, required) — destination topic.
    May be a template (supports {{ ... }}, {{# ...}} … {{/ ...}}) or a plain topic string (no + / #).
  • retain (boolean, default false) — set MQTT retain on publishes.
  • qos (integer 0…2, default 0) — PUBLISH QoS for the mapped message.
    (Independent of subscription.qos.)

static mapping

Exact string-to-string payload conversion.

"static": {
"mapped_topic": "other_device/some_actuator/set",
"message_mapping": [
{ "message": "pressed", "mapped_message": "on" },
{ "message": "released", "mapped_message": "off" }
],
"retain": false,
"qos": 0
}

value mapping (template, scalar)

Treat the incoming payload as a scalar bound to the template variable message.

"value": {
"mapped_topic": "other_device/some_actuator/set",
"mapping_template": "{% if message == \"pressed\" %}on{% else if message == \"released\" %}off{% endif %}",
"retain": false,
"qos": 0
}

json mapping (template, object)

Treat the incoming payload as a JSON object, available as message inside the template.

"json": {
"mapped_topic": "other_device/some_actuator/set",
"mapping_template": "{{ message.time.start }} to {{ message.time.end + 1 }}pm",
"retain": false,
"qos": 0
}

Example input

{ "time": { "start": 5, "end": 10 } }

Rendered output → 5 to 11pm

Template extras

  • For template mappings (value / json), an optional field is available:

    "suppressions": []

    Use this list for implementation-specific template controls. If unused, keep it empty ([]).

Optional: plugins

Inside mapping, you may provide an optional plugins array:

"mapping": {
"plugins": ["pluginA", "pluginB"],
"topic_level": { /* … */ }
}

This is a list of plugin identifiers that the integrator may use to extend mapping behavior.
(Behavior is implementation-specific; leave empty if not needed.)

Quick Start (Recommended Flow)

Skeleton mapping file

{
"discover_prefix": "",
"connection": {
"keep_alive": 60,
"clean_session": true
},
"mapping": {
"topic_level": {
"name": "devices"
}
}
}

Add a concrete subscription with a simple static mapping

{
"mapping": {
"topic_level": {
"name": "devices",
"topic_level": {
"name": "button",
"subscription": {
"type": "binary_sensor",
"qos": 0,
"static": {
"mapped_topic": "actuators/light/set",
"message_mapping": [
{ "message": "pressed", "mapped_message": "on" },
{ "message": "released", "mapped_message": "off" }
]
}
}
}
}
}
}

Switch to a template mapping when you need logic

"subscription": {
"type": "thermo",
"qos": 1,
"json": {
"mapped_topic": "sensors/room1/summary",
"mapping_template": "T={{ message.temp }};H={{ message.hum }}"
}
}

Validate against the schema (example with ajv-cli)

ajv validate -s lib/mapping-schema.json -d your-mapping.json

Run the integrator with your mapping

mqttintegrator --mqtt-mapping-file your-mapping.json

Field-Tested Guidance

  • Use wildcards deliberately. + is perfect for “same depth, many devices”; # is best at a leaf to catch everything below a prefix.
  • Start simple. Verify flow with a static mapping; then move to value/json templates.
  • Arrays unlock fan-out. static / value / json accept arrays—emit multiple outputs from one input.
  • Decide retain intentionally. For derived state (e.g., “current mode”), retain: true is often useful; for events, prefer false.
  • QoS roles are separate. subscription.qos = subscribe QoS; mapping qos = publish QoS.
  • Validate early. Keep the schema in CI; reject invalid mappings before deployment.
  • Version control. Store mapping files with your app; review changes and test on staging.

Schema Highlights

  • Root: mapping is required.
  • mapping.topic_level: a single object or an array of them.
    Each topic_level requires name and either a nested topic_level or a subscription.
  • topic_level.name: may be a literal or a single-char wildcard + or # (per schema pattern).
    # is typically used at a leaf.
  • Mapping sections: require either or an array of static, value, or json (each may be an array).
  • mapped_topic: non-empty; either a plain topic (no +/#) or a template expression.

In one sentence

Model the topic tree (literals and +/#) → choose subscription points (with subscribe QoS) → translate via static / value / json (with publish QoS) → validate with the schema → run the integrator.

MQTTIntegrator

The MQTTIntegrator is the lightweight transformation engine of the MQTTSuite. It subscribes to topics on an MQTT broker, translates topics/payloads using the mapping description (presented earlier), and publishes the translated messages back to the same broker connection.

Additional transports can be added in the source: mqttintegrator.cpp.

Connection instances of default builds of MQTTIntegrator

  • in-mqtt: MQTT over IPv4 (client to remote 1883)
  • in-mqtts: MQTTS over IPv4 (client to remote 8883)
  • in6-mqtt: MQTT over IPv6 (client to remote 1883)
  • in6-mqtts: MQTTS over IPv6 (client to remote 8883)
  • un-mqtt: MQTT over Unix Domain Sockets (client to remote sun path)
  • un-mqtts: MQTTS over Unix Domain Sockets (client to remote sun path)
  • in-wsmqtt: MQTT over WebSockets via IPv4 (client to remote 8080, target /ws)
  • in-wsmqtts: MQTTS over WebSockets via IPv4 (client to remote 8088, target /ws)
  • in6-wsmqtt: MQTT over WebSockets via IPv6 (client to remote 8080, target /ws)
  • in6-wsmqtts: MQTTS over WebSockets via IPv6 (client to remote 8088, target /ws)
  • un-wsmqtt: MQTT over Unix Domain WebSockets (client to remote sun path, target /ws)
  • un-wsmqtts: MQTTS over Unix Domain WebSockets (client to remote sun path, target /ws)

One can control which instances are built by enabling or disabling them through the available cmake options.

Configuration

All aspects—such as remote host/port, UNIX sun paths, WebSocket request targets, and per-connection options—are configurable via the SNode.C configuration system. You can set options in code, on the command line, or via a configuration file.

If encrypted access to the broker is required, suitable certificates need to be provided for the client connection.

Notes

  • Persistent sessions: Configure a session store if you want the client session to survive restarts:
    --mqtt-session-store <path-to-session-store-file>.
  • Mapping file (required for translations): Provide --mqtt-mapping-file <path-to-mqtt-mapping-file.json>.
    The mapping syntax, wildcard support (+, #), subscribe QoS vs publish QoS, and templating are documented in the MQTT Mapping Description section placed before this one.
  • Active instances by default: After installation, all connection instances are enabled. Disable unused ones explicitly with --disabled on those instances.
  • Persisting options: Use --write-config or -w once to store current options in the configuration file.

Quick Start (Recommended Flow)

Per default, all supported connection instances are enabled. Disable what you don’t use and keep a single, clear path to your broker.

Disable all but the in-mqtt instance

mqttintegrator in-mqtts --disabled
in6-mqtt --disabled
in6-mqtts --disabled
un-mqtt --disabled
un-mqtts --disabled
in-wsmqtt --disabled
in-wsmqtts --disabled
in6-wsmqtt --disabled
in6-wsmqtts --disabled
un-wsmqtt --disabled
un-wsmqtts --disabled

Connect to a plain MQTT broker over TCP/IPv4

mqttintegrator in-mqtt \
remote --host 127.0.0.1 \
--port 1883

Add a persistent session store (survives restarts)

mqttintegrator --mqtt-session-store /var/lib/mqttsuite/mqttintegrator/session.store \
in-mqtt \
remote --host 127.0.0.1 \
--port 1883

Attach your mapping file (canonical test case below)

mqttintegrator --mqtt-session-store /var/lib/mqttsuite/mqttintegrator/session.store \
--mqtt-mapping-file /etc/mqttsuite/mappings/mapping-example.json \
in-mqtt \
remote --host 127.0.0.1 \
--port 1883

Persist your configuration using -w

mqttintegrator --mqtt-session-store /var/lib/mqttsuite/mqttintegrator/session.store \
--mqtt-mapping-file /etc/mqttsuite/mappings/mapping-example.json \
in-mqtt \
remote --host 127.0.0.1 \
--port 1883 \
-w

From now on, a plain mqttintegrator starts with the stored configuration.

(Optional) Use TLS (MQTTS) instead of plain TCP

mqttintegrator in-mqtts --disabled=false \
remote --host broker.example.org \
--port 8883 \
tls --cert /etc/ssl/mqttsuite/client.crt \
--cert-key /etc/ssl/mqttsuite/client.key \
--ca-cert /etc/ssl/mqttsuite/ca.crt

(Optional) Use WebSockets (WSS)

mqttintegrator in-wsmqtts --disabled=false \
remote --host broker.example.org \
--port 8088 \
tls --ca-cert /etc/ssl/mqttsuite/ca.crt

(Optional) Use Unix Domain WebSockets

mqttintegrator un-wsmqtt --disabled=false \
remote --sun-path /tmp/mqttbroker-un-http
mqttintegrator un-wsmqtts --disabled=false \
remote --sun-path /tmp/mqttbroker-un-https3 \
tls --ca-cert /etc/ssl/mqttsuite/ca.crt

Supported Transports

The MQTTIntegrator uses a client connection to a single broker. All tables show remote endpoints (not local listeners).
Disable unused instances with --disabled.

MQTT over TCP/IP

Instance Protocol Encryption Remote Port
in-mqtt IPv4 No 1883
in-mqtts IPv4 Yes 8883
in6-mqtt IPv6 No 1883
in6-mqtts IPv6 Yes 8883

MQTT over UNIX Domain Sockets

Instance Encryption Remote Sun Path
un-mqtt No /tmp/mqttbroker-un-mqtt
un-mqtts Yes /tmp/mqttbroker-un-mqtts

MQTT over WebSockets

Instance Protocol Encryption Remote Port Request Target Sec-WebSocket-Protocol
in-wsmqtt IPv4 No 8080 /ws mqtt
in-wsmqtts IPv4 Yes 8088 /ws mqtt
in6-wsmqtt IPv6 No 8080 /ws mqtt
in6-wsmqtts IPv6 Yes 8088 /ws mqtt

MQTT over UNIX Domain WebSockets

Instance Encryption Remote Sun Path Request Target Sec-WebSocket-Protocol
un-wsmqtt No /tmp/mqttbroker-un-http /ws mqtt
un-wsmqtts Yes /tmp/mqttbroker-un-https /ws mqtt

Notes

  • For all WS/WSS/UDS-WS instances, the integrator uses Sec-WebSocket-Protocol: mqtt and the request target /ws.
  • All instances above are enabled by default after installation; deactivate any unneeded instance with --disabled.

Canonical Mapping & Test Case

This minimal, schema-valid mapping subscribes to kitchen/thermostat/1 and publishes to kitchen/heating/1/set:

  • "on" if temp < 21.0
  • "off" if temp > 23.0
  • no publish in the 21.0–23.0 deadband

Save as ~/mapping-example.json:

{
"discover_prefix": "snode.c",
"connection": {
"keep_alive": 60,
"client_id": "Client",
"clean_session": true,
"will_topic": "will/topic",
"will_message": "Last Will",
"will_qos": 0,
"will_retain": false,
"username": "Username",
"password": "Password"
},
"mapping": {
"topic_level": {
"name": "kitchen",
"topic_level": {
"name": "thermostat",
"topic_level": {
"name": "1",
"subscription": {
"type": "thermostat",
"qos": 0,
"json": {
"mapped_topic": "kitchen/heating/1/set",
"mapping_template": "{% if message.temp < 21.0 %}on{% else if message.temp > 23.0 %}off{% endif %}",
"retain": false,
"qos": 0,
"suppressions": [""]
}
}
}
}
}
}
}

Run the integrator for this mapping (in-mqtt):

mqttintegrator --mqtt-session-store ~/session.store \
--mqtt-mapping-file ~/mapping-example.json \
in-mqtt \
remote --host 127.0.0.1 \
--port 1883

Persist once:

mqttintegrator --mqtt-session-store ~/session.store \
--mqtt-mapping-file ~/mapping-example.json \
in-mqtt
remote --host 127.0.0.1
--port 1883 \
-w

Then just run

mqttintegrator

Verification

# Observe mapped results
mqttcli in-mqtt
remote --host 127.0.0.1 \
--port 1883 \
sub --topic 'kitchen/heating/1/set'
# 20.9 → "on"
mqttcli in-mqtt
remote --host 127.0.0.1 \
--port 1883 \
pub --topic 'kitchen/thermostat/1'
--message '{"temp":20.9}'
# 23.5 → "off"mqttcli in-mqtt
remote --host 127.0.0.1 \
--port 1883 \
pub --topic 'kitchen/thermostat/1'
--message '{"temp":23.5}'
# 22.7 → deadband → no publish
mqttcli in-mqtt
remote --host 127.0.0.1 \
--port 1883 \
pub --topic 'kitchen/thermostat/1'
--message '{"temp":22.7}'

QoS roles: subscription.qos controls the subscribe QoS. The json.qos inside the mapping controls the publish QoS for the mapped message.

Behavior aligned with the Mapping Description

  • The mapping file defines where the integrator places subscriptions in the topic tree (including support for + and # in topic_level.name). The integrator performs correct wildcard matching when subscribing and dispatching.
  • subscription.qos specifies the QoS used to subscribe at the broker; it does not control publish QoS.
  • Each mapping rule (in static, value, or json) has its own publish qos and retain flags and a mapped_topic (string or template).
  • Arrays are allowed (static / value / json), enabling fan-out (multiple publishes per inbound message).
  • The integrator republishes transformed messages back to the same broker connection from which they were received.

Additions & Field-Tested Guidance

TLS checklist for client connections (MQTTS / WSS / UDS-WSS)

  • Provide client certificate & key if your broker enforces mutual TLS; otherwise a CA bundle is often sufficient.
  • Ensure the broker hostname you connect to is covered by the server certificate’s CN/SAN (for TCP/WSS).
  • Lock down permissions on key files (e.g., chmod 600, owned by the service user).
  • Configure TLS under the chosen instance’s tls subsection.

Example (TCP/TLS) with mutual TLS:

mqttintegrator in-mqtts \
remote --host broker.example.org \
--port 8883 \
tls --ca-cert /etc/ssl/mqttsuite/ca.crt \
--cert /etc/ssl/mqttsuite/cert.crt \
--cert-key /etc/ssl/mqttsuite/cert.key \
--cert-key-password 'some-password'

Example (WebSockets/TLS):

mqttintegrator in-wsmqtts \
remote --host broker.example.org \
--port 8088 \
tls --ca-cert /etc/ssl/mqttsuite/ca.crt

Example (Unix Domain WebSockets, TLS layered on the WS endpoint):

mqttintegrator un-wsmqtts \
remote --sun-path /tmp/mqttbroker-un-https

Persist-once workflow (recommended)

  • Start with explicit CLI flags; verify connectivity and message flow.
  • Run once with -w (or --write-config) to save the configuration.
  • Thereafter, use mqttintegrator without flags; override only deltas when needed.

Commonly persisted options:

  • --mqtt-session-store <path> — keep client session state across restarts.
  • --mqtt-mapping-file <path.json> — apply your transformation/normalization rules.

WebSockets specifics that often trip clients

  • Subprotocol: the integrator sets Sec-WebSocket-Protocol: mqtt. Ensure the broker accepts it.
  • Request target: use /ws (do not change unless your broker explicitly uses a different target).
  • Through proxies: Upgrade, Connection, and Sec-WebSocket-Protocol must pass through unchanged.
  • UDS-WS: ensure the sun path matches the broker’s WS UDS listener (e.g., /tmp/mqttbroker-un-http or /tmp/mqttbroker-un-https) and that file permissions allow access.

Diagnostics, hardening & common pitfalls

Diagnostics

  • Cannot connect: verify remote --host/--port (or --sun-path) values and broker reachability.
  • TLS failures: hostname mismatch, missing CA, or wrong client certificates.
  • WS upgrade errors: wrong request target (/ws) or missing mqtt subprotocol.

Hardening

  • Prefer UNIX domain sockets on the same host for reduced attack surface.
  • Use TLS (and client auth where required) across untrusted networks.
  • Restrict file permissions for keys and session store.

Common pitfalls

  • All instances active: disable unused instances to avoid accidental connections.
  • Wrong broker path: mismatched WS target or socket path leads to silent failures.
  • Mapping file path typos: the integrator starts but no transforms occur—double-check the filename.

Protocol version note

  • The integrator speaks MQTT 3.1.1 as a client. Configure your broker accordingly.

Why this layout works well in production

  • Single-broker focus: clear operational model—subscribe, transform, and republish on the same connection.
  • Uniform instance model: TCPv4/v6, UNIX sockets, Unix Domain WebSockets, and IP WebSockets share a consistent configuration surface.
  • Persist-once simplicity: Use -w once; day-to-day runs are minimal and repeatable.

MQTTBridge

The MQTTBridge is a pure client-side bridge in the MQTTSuite. It creates one or more logical bridges, where each bridge connects to two or more MQTT brokers and relays topics among them. Forwarding is governed by a single JSON file, bridge-config.json. The bridge does not expose listeners; every connection is an outbound client connection to a remote broker.

Like the other MQTTSuite apps, the bridge supports the same transport families (TCP/IPv4, TCP/IPv6, UNIX domain sockets, and WebSockets over these), plus optional Bluetooth (RFCOMM/L2CAP) if built. The network section of the JSON selects transport and security per broker.

Key properties

  • Multi-broker fan-out: Messages received from one broker are forwarded to all the other brokers in the same logical bridge, subject to topic filters, prefix rules, and loop prevention.
  • Prefixes: Optional bridge-level and broker-level prefixes help avoid collisions and enable simple routing.
  • Loop prevention: Optional per-broker flag to reduce message echo/loops.
  • QoS per subscription: Each broker’s subscription list sets the SUBSCRIBE QoS used toward that broker.
  • Session stores: Optional per-broker on-disk session stores to resume state across restarts.
  • Protocol: MQTT 3.1.1 client behavior.

Quick Start (Recommended Flow)

Create a minimal bridge-config.json

Two brokers, bidirectional, loop prevention on:

{
"bridges": [
{
"name": "local↔edge",
"prefix": "bridge/",
"brokers": [
{
"network": {
"instance_name": "local-ws",
"protocol": "in",
"in": { "host": "127.0.0.1", "port": 8080 },
"encryption": "legacy",
"transport": "websocket"
},
"prefix": "local/",
"mqtt": {
"client_id": "bridge-local",
"clean_session": true,
"loop_prevention": true
},
"topics": [
{ "topic": "#", "qos": 0 }
]
},
{
"network": {
"instance_name": "edge-tcp",
"protocol": "in",
"in": { "host": "edge.example.net", "port": 1883 },
"encryption": "legacy",
"transport": "stream"
},
"prefix": "edge/",
"mqtt": {
"client_id": "bridge-edge",
"clean_session": true,
"loop_prevention": true
},
"topics": [
{ "topic": "#", "qos": 0 }
]
}
]
}
]
}

Run the bridge:

mqttbridge bridge --definition /etc/mqttsuite/bridge-config.json

Verify (example):

# Publish on 'local' broker → should appear on 'edge' with prefixing
mqttcli in-wsmqtt remote --host 127.0.0.1 --port 8080 \
pub --topic 'sensors/temp' --message '21.5'
# Subscribe on edge:
mosquitto_sub -h edge.example.net -p 1883 -t 'bridge/local/#' -v

Persist-once workflow: Like other MQTTSuite apps, you can persist CLI runtime options with -w. The bridge topology itself lives in bridge-config.json, so you typically run mqttbridge --bridge-config-file … thereafter.

Bridge Configuration JSON

This section shows the overall file structure first, then elaborates on each element. Unknown keys are rejected (additionalProperties: false throughout the schema).

Overall Structure (at a glance)

{
"bridges": [ // required, ≥ 1 items
{
"disabled": false, // optional
"name": "bridge-name", // required (string)
"prefix": "bridge/", // optional (string, default "")
"brokers": [ // required, ≥ 1 items
{
"disabled": false, // optional
"session_store": "/var/lib/mqttsuite/mqttbridge/session-1.store", // optional
"network": { // required
"instance_name": "local-ws",
"protocol": "in", // one of: in | in6 | un | rc | l2
"encryption": "legacy", // one of: legacy | tls
"transport": "websocket",// one of: stream | websocket
// exactly one of: in | in6 | un | rc | l2, matching "protocol"
"in": { "host": "127.0.0.1", "port": 8080 }
// "in6": { "host": "::1", "port": 8080 }
// "un": { "path": "/run/mqttbroker.unix" }
// "rc": { "host":"AA:BB:CC:DD:EE:FF","channel":1 }
// "l2": { "host":"AA:BB:CC:DD:EE:FF","psm":25 }
},
"mqtt": { // optional; defaults shown
"client_id": "",
"keep_alive": 60,
"clean_session": true,
"will_topic": "",
"will_message": "",
"will_qos": 0, // 0..2
"will_retain": false,
"username": "",
"password": "",
"loop_prevention": false
},
"prefix": "local/", // optional (string, default "")
"topics": [ // optional (≥ 1), default: [{ "topic":"#", "qos":0 }]
{ "topic": "#", "qos": 0 }
]
}
// ... more brokers in this bridge
]
}
// ... more bridges
]
}

Forwarding logic (mental model):
Within each configured bridge, the MQTTBridge establishes connections to all configured brokers and subscribes to their specified topics, ensuring message forwarding begins immediately after connection. Incoming messages that match a subscriptions are forwarded to all the other brokers in the same bridge. When forwarding, the bridge applies (if set):

<bridge.prefix> + <source-broker.prefix> + <original-topic>

Looping is mitigated with mqtt.loop_prevention: true (per broker) plus sensible prefixing.

Elements in Detail

Root Object

Field Type Required Default Notes
bridges array ✅ — Must contain ≥ 1 bridge objects. Unknown keys rejected.

bridge (each item in bridges)

Field Type Required Default Notes
disabled boolean ✖ false If true, this whole bridge is ignored.
name string ✅ — Logical name for logs/metrics.
prefix string ✖ "" Optional bridge-wide prefix added before forwarding.
brokers array ✅ — ≥ 1 broker definitions that participate in this bridge.

broker (each item in brokers)

Field Type Required Default Notes
disabled boolean ✖ false If true, this broker does not connect/forward.
session_store string ✖ "" Optional path to persist client session (useful with clean_session: false).
network object ✅ — Transport selection and concrete address (see network below).
mqtt object ✖ defaults MQTT client opts (credentials, last will, loop prevention).
prefix string ✖ "" Optional source-broker prefix added when forwarding from this broker to others.
topics array ✖ defaults Subscription filters towards this broker (SUBSCRIBE QoS per item). Must be ≥1 if present.

Subscribe QoS is taken from topics[].qos toward the source broker.
Publish QoS used when forwarding is chosen by the bridge’s policy; align deployment for consistency (QoS 0/1 are common).

mqtt (client options)

Field Type Required Default Constraints / Notes
client_id string ✖ "" Let the broker assign if empty, or set explicitly.
keep_alive integer ✖ 60 Seconds between pings.
clean_session boolean ✖ true Set false to resume session (pair with session_store).
will_topic string ✖ "" Optional Last Will topic.
will_message string ✖ "" Optional Last Will payload.
will_qos integer ✖ 0 0..2.
will_retain boolean ✖ false —
username string ✖ "" Broker auth (if required).
password string ✖ "" Broker auth (if required).
loop_prevention boolean ✖ false Enable to mitigate echo loops. Combine with origin prefix.

topics (subscriptions for a broker)

Each item is a topic object:

Field Type Required Default Constraints / Notes
topic string ✅ "#" MQTT filter (#, + allowed).
qos integer ✖ 0 One of 0, 1, 2 (SUBSCRIBE QoS).

These control which inbound topics are accepted from this broker. Matching messages are forwarded to other brokers.

network (transport selection + addressing)

Field Type Required Values / Example Notes
instance_name string ✅ "local-ws" Logical name; shows in logs.
protocol string ✅ in | in6 | un | rc | l2 Selects address object below.
encryption string ✅ legacy | tls tls for TLS (MQTTS/WSS).
transport string ✅ stream | websocket MQTT over TCP vs WebSockets.
in object if protocol: in { "host": "127.0.0.1", "port": 1883 } IPv4 host/port.
in6 object if protocol: in6 { "host": "::1", "port": 1883 } IPv6 host/port.
un object if protocol: un { "path": "/run/mqtt.sock" } Unix domain path (max ~107 chars).
rc object if protocol: rc { "host":"AA:BB:CC:DD:EE:FF", "channel": 1 } Bluetooth RFCOMM.
l2 object if protocol: l2 { "host":"AA:BB:CC:DD:EE:FF", "psm": 25 } Bluetooth L2CAP.

Exactly one address object (in/in6/un/rc/l2) must be present, consistent with protocol.

WebSockets specifics: For WebSockets, the suite uses request target /ws and subprotocol mqtt. No extra fields are needed in the JSON.

Address constraints (from schema):

  • in, in6: port ∈ [1,65535], host is a string (IPv4/IPv6 or hostname).
  • un: POSIX path, ^/(?:[^\0])+$, maxLength: 107.
  • rc: Bluetooth MAC (^([0-9A-Fa-f]{2}:){5}[0-9A-Fa-f]{2}$), channel ∈ [1,30].
  • l2: Bluetooth MAC as above, psm ∈ [1,65535].

Best Practices & Validation Tips

  • Validation: Stick to the schema—unknown keys fail validation (additionalProperties: false).
  • Secrets: Keep credentials out of VCS; generate the final JSON at deploy time or mount via secrets.
  • Prefixes: Use a bridge prefix (e.g., bridge/) and origin prefixes (e.g., local/, ttn/) to keep topics intelligible and enable filtering.
  • Loop prevention: Enable mqtt.loop_prevention: true wherever bidirectional paths overlap. Combine with origin prefixing so the bridge recognizes its own forwarded traffic.
  • Subscriptions & QoS: Start broad ("#", QoS 0); once data flows, narrow filters. Keep end-to-end QoS consistent.
  • Sessions & LWT: For unstable links, define a session_store and consider clean_session: false. Configure Last Will if operators rely on presence/health topics.
  • UNIX domain sockets: Place sockets under /run or /var/run; set ownership/permissions for the bridge process.
  • WebSockets: Target /ws and ensure the broker accepts subprotocol mqtt.
  • Diagnostics:
    • No forwarding: Check the source broker’s topics[] filter and verify the other brokers subscribe to the forwarded, prefixed paths.
    • Echo storms: Add prefixes and enable loop prevention on both sides; avoid subscribing to your own bridged prefix everywhere.
    • WS handshake failures: Wrong target or missing subprotocol.

MQTTCli

MQTTCli is the command-line client of the MQTTSuite. It can publish messages and subscribe to topics, supports the same transport families as the other apps (TCP/IPv4, TCP/IPv6, UNIX domain sockets, WebSockets over these, with optional TLS), and integrates with the shared SNode.C configuration system. Typical use cases: quick broker smoke tests, scripted data injection, and ad-hoc topic inspection.

Quick Start (Recommended Flow)

1) Subscribe to everything on a local broker (TCP/IPv4):

mqttcli in-mqtt
remote --host 127.0.0.1
--port 1883
sub --topic '#'

2) Publish a message:

mqttcli in-mqtt
remote --host 127.0.0.1
--port 1883
pub --topic 'test/topic'
--message 'hello'

3) WebSockets (HTTP) publish:

mqttcli in-wsmqtt
remote --host 127.0.0.1
--port 8080
pub --topic 'test/topic'
--message 'hello'

4) UNIX domain socket publish:

mqttcli un-mqtt
remote --sun-path /tmp/mqttbroker-un-mqtt
pub --topic 'test/topic'
--message 'hello'

5) Subscribe and publish in one go (handy for quick checks):

mqttcli in-mqtt
remote --host 127.0.0.1
--port 1883
sub --topic '#'
pub --topic 'test/topic'
--message 'hello'

Tip: When publishing JSON on a shell, wrap payloads in single quotes to avoid escaping issues: --message '{"k":1}'.

Command Structure

mqttcli <instance> [tls …] remote|local <endpoint-options> (sub …)? (pub …)?
  • <instance> selects the transport preset (see tables below).
  • remote|local chooses endpoint style:
    • remote --host <addr> --port <n> for TCP/WebSockets, or
    • remote --sun-path <path> for UNIX domain sockets.
  • sub and pub may be combined in a single invocation.

  • TLS is configured under a tls group when using *s instances (e.g., in-mqtts, in-wsmqtts):

    tls --cert <crt> --cert-key <key> --ca-cert <ca>

Supported Transports

MQTT over TCP/IP

Instance Protocol Encryption Port
in-mqtt IPv4 No 1883
in-mqtts IPv4 Yes 8883
in6-mqtt IPv6 No 1883
in6-mqtts IPv6 Yes 8883

MQTT over UNIX Domain Sockets

Instance Encryption Path Example
un-mqtt No /tmp/mqttbroker-un-mqtt
un-mqtts Yes /tmp/mqttbroker-un-mqtts

MQTT over WebSockets

Instance Protocol Encryption Port Default Request Target Sec-WebSocket-Protocol
in-wsmqtt IPv4 No 8080 /ws mqtt
in-wsmqtts IPv4 Yes 8088 /ws mqtt
in6-wsmqtt IPv6 No 8080 /ws mqtt
in6-wsmqtts IPv6 Yes 8088 /ws mqtt

MQTT over UNIX Domain WebSockets

Instance Encryption Path Example Default Request Target Sec-WebSocket-Protocol
un-wsmqtt No /tmp/mqttbroker-un-http /ws mqtt
un-wsmqtts Yes /tmp/mqttbroker-un-https /ws mqtt

Additions & Field-Tested Guidance

TLS quick checklist

  • Use the *s instances (e.g., in-mqtts, in-wsmqtts) when you need TLS.

  • Provide CA for server verification and certificate/key when mutual auth is required:

    mqttcli in-mqtts
    remote --host broker.example.org
    --port 8883
    tls --ca-cert /etc/ssl/mqttsuite/ca.crt
  • Ensure the server name (SNI/hostname) matches the certificate SAN/CN.

WebSockets specifics

  • The subprotocol mqtt must be negotiated; ensure proxies preserve Upgrade, Connection, and Sec-WebSocket-Protocol.
  • Default request targets / and /ws are accepted by the MQTTSuite WS endpoints.

UNIX domain sockets

  • Prefer /run or /var/run for service-managed sockets; adjust file ownership/permissions for non-root users.

Persist once (optional)

  • You can persist frequently reused options via -w:

    mqttcli in-mqtt
    remote --host mqtt.local
    --port 1883
    sub --topic 'sensors/#'
    -w

    Thereafter, a plain mqttcli may reuse the stored configuration.

Handy Patterns

  • Live-tail everything, then publish:

    mqttcli in-mqtt
    remote --host 127.0.0.1
    --port 1883
    sub --topic '#'
    pub --topic 'test/topic'
    --message 'hello'

  • Publish JSON:

    mqttcli in-mqtt
    remote --host 127.0.0.1
    --port 1883
    pub --topic 'sensors/room1'
    --message '{"temp":22.7,"hum":48}'

  • WS to local Broker UI port (8080):

    mqttcli in-wsmqtt
    remote --host 127.0.0.1
    --port 8080
    sub --topic '#'
    http --target /ws

Notes

  • Protocol: MQTT 3.1.1 (align your client expectations accordingly).
